Product name：23F3514MC-5 (35mm) 2/3"

Product description：

35mm 2/3" 5MP Machine Vision FA <1% Low Distortion F1.4 Industrial Recognition 4K ITS AI Sort Camera C Megapixel Lenses

High resolution : 5.0 megapixel cover all 4K & 1080P
Large format: 2/3" size covering 2/3", 1/1.8", 1/2" camera
Big aperture : F1.4 big aperture makes imaging far better
Low distortion : <1% low distortion use machine vision ITS
Application : Automation, machine vision, medical, life science, ITS, SMT, AOI

Model		23F3514MC-5
Resolution		5.0 Megapixel
Format (inch)		2/3"
Focal Length (mm)		35mm
B.F.L (mm )		17.6mm
Aperture (Close)		F1.4 Manual Iris
Angle of View (°)	2/3"	*1814.411*
	1/2"
	1/3"
M.O.D (m)		0.5

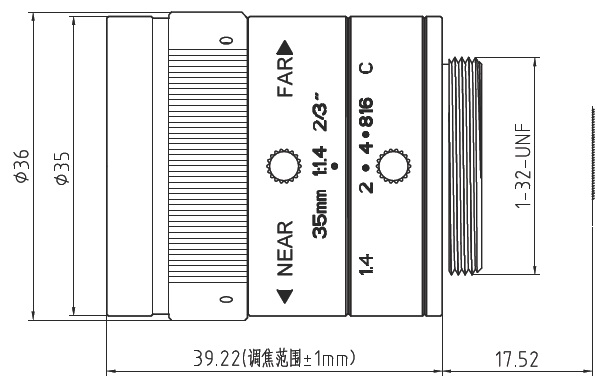

Size		*Φ3639.22**
Distortion		<1%
Mount		C
Weight (g)		105
