Product name：SFY0920-8M ( 0.9mm ) 1/3.2"

Product description：

0.9 mm 1/3.2" 8.0 Megapixel Fisheye CCTV Lens For Camera Sport ITS Crossing Security Surveillance Lenses 360 Panoramic Intercom Door

High resolution: 8.0 megapixel covering 4K,1080P
Focal length: 0.9mm support wide FOV.
Small format: 1/3.2"
Big aperture : F2.0 support vast occassions.
Application: Observatory, street, office, intercom, surveilance etc .

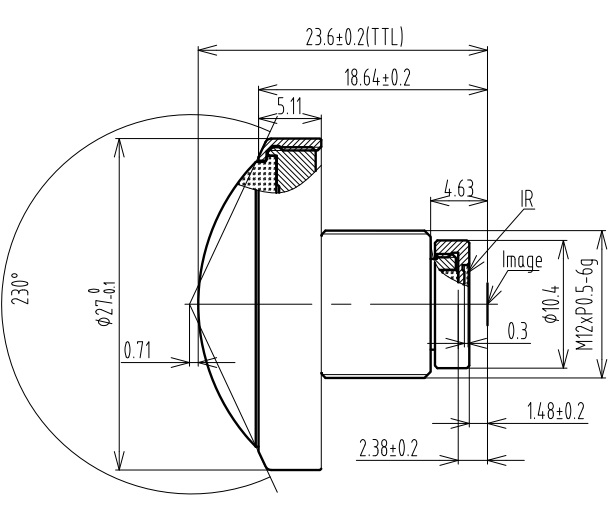

Model		SFY0920-8M
Resolution		8.0 Megapixel
Format (inch)		1/3.2" (Max image circle Φ3.4)
Focal Length (mm)		0.9mm
IR		/
Aperture (Close)		F2.0 Fixed iris
Angle of View (°)	1/2"
	1/2.7"
	1/3.2"	*230230230*
M.O.D (m)		0.05m
Distortion		<3%
Size		Φ*2718.97mm**
Filter size (mm)		/
CRA		16°
Relative illumination		60%
T.T.L (mm)		23.6mm
Mount		*M120.5**
Weight (g)		15g
Marks		Element 7G
