25mm 1.1" 20MP Machine Vision FA <0.1% Low Distortion Industrial Face Recognition 8K Camera Megapixel Lenses
High resolution : 20 megapixel cover all 8K & 4K Large format: 1.1" size covering 1", 3/4, 2/3", 1/1.8", 1/2" camera Low distortion : <0.1% low distortion use machine vision Magnification : 0.005x ~ 0.221x Illumimation : 45% Application : Automation, machine vision, medical, life science, ITS, SMT, AOI
![](manager/upload/201811/20181109161111938.jpg)
Model
| 11F2528MC-20
| Resolution
| 20 Megapixel
| Format (inch)
| 1.1"
| Focal Length (mm)
| 25mm
| B.F.L (mm )
| 22.4mm
| Aperture (Close)
| F2.8 Manual Iris
| Angle of View (°)
| 1.1"
| 38*30.4*23
| 1"
| 35*28*21
| 2/3"
| 24*19.2*15
| M.O.D (m)
| 0.1
| Distortion
| <0.1%
| Filter size (mm)
| M35.5*P0.5

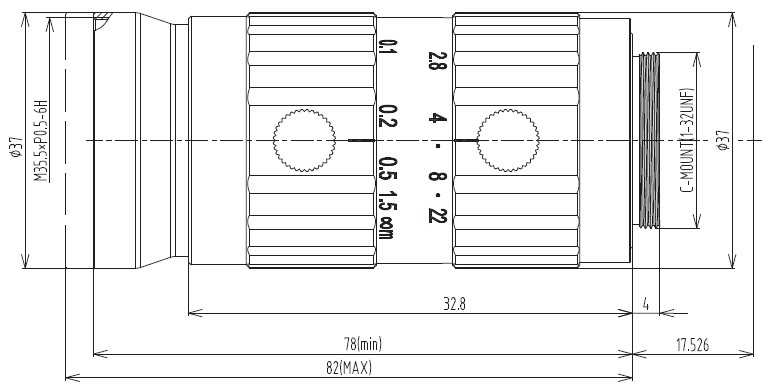

| Size
| Φ37*82
| Mount
| C
| Weight (g)
| 235
|
|
