The STC11230-64H 2/3" Bi-Telecentric Lenses are specially designed for high-precision application including metrology, inspection etc., these lenses feature a varity of FOV up to 300mm, customized design for 1/2.5" ~1.1" sensor, and bi-telecentric design for high quality imaging.
Optimized for 1/2.5"~1.1" C-Mount cameras; Large FOV from 26mm upto 300mm; Excellent resolution for high pixel cameras; Low distortion, good telecentricity,big aperture and big depth of field for high end application.
| Optical specifications | | Magnification(x) | 0.178 | | Object Field of View (Φmm) | 64 | | Working Distance (mm) | 158±3 | | Max Sensor Size (Φmm) | 11.4(2/3") | | Best Aperture (F/#) | 4.9 | |
Telecentricity typical (max) (deg) |
<0.1 | | Distortion typical (max) (%) | <0.1 | |
MTF30 (lp/mm) |
>180 | | Depth of Field (mm) | ±13.9@F11 | | Length of I/O (mm) | 348±3 |
| Field of View (mm × mm) | | 8.47x7.1 with ICX625/655 | 47.6x39.9 |

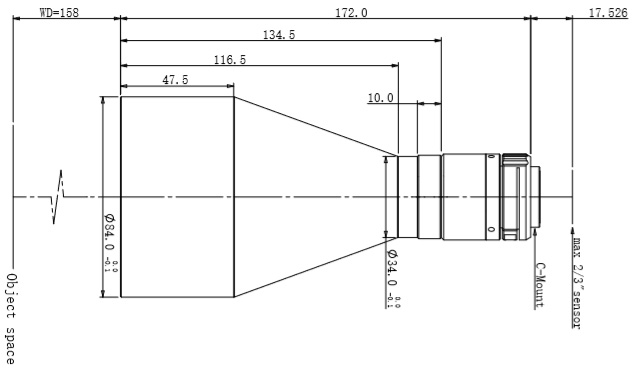

| Mechanical Specifications | | Mount | C | | Length (mm) | 172.0 | | Weight (kg) | 0.8 |
|
