F-Mount high precision bi telecentric lenses are the typical choice for extremely accurate measurement of large items such as engine parts, glass or metal sheets, PCBs and electronic components, LCDs, etc.

• Optimized for 4/3"~35mm F-Mount cameras;

• Perfectly suitable for 4K and 8K line scan cameras;

• FOV ranges from 26mm to 300mm;

• Very high resolution, low distortion and homogeneous image quality;

• Yield constant magnification over defined depth of field;

• Customized mounts available.

  <span style="font-family:" font-size:12px;"="">



  Optical specifications
  Magnification(x)	0.806
  Object Field of View (Φmm)	36
  Working Distance (mm)	110±2
  Max Sensor Size (Φmm)	29(1.75")
  Best Aperture (F/#)	13.5
  Telecentricity typical (max) (deg)	<0.1
  Distortion typical (max) (%)	<0.1
  MTF30 (lp/mm)	>60
  Depth of Field (mm)	±1.2@F20
  Length of I/O (mm)	331±2

  Field of View  (mm × mm)
  22.53x16.90 with CMV12000	28.0x21.0
  18.43x18.43 with PYTHON16k	22.9x22.9
  28.8mm with LineScan-2k/4k/8k	35.7mm

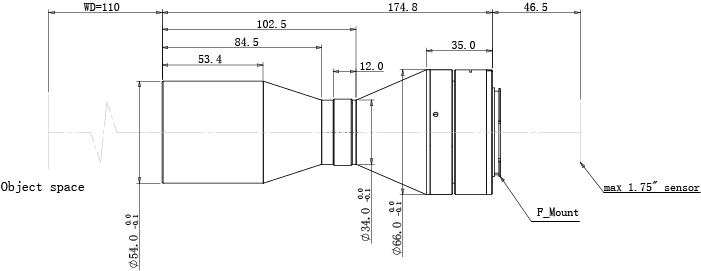

  Mechanical Specifications
  Mount	F or Other
  Length (mm)	174.8
  Weight (kg)	0.8
