Product name：SND3429-8M ( 2.7mm ) 1/3"

Product description：

2.7mm 1/3" 8.0 Megapixel Lenses Machine Vision FA <1.53% Low Distortion Industrial Face Recognition Scan Video Camera CCTV Lens

High resolution : 8 megapixel covering all 5MP & 1080P
Large format: 1/3"
Low distortion : <1.53% low distortion
Small size: Small size disign makes it various application
Application : Video converference, UAV, scanner, sports DV, machine vision.

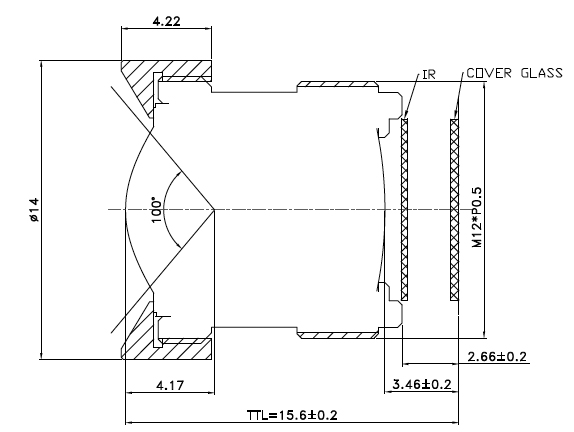

Model		SND3429-8M
Resolution		8.0 Megapixel
Format (inch)		1/3"
Focal Length (mm)		2.7mm
B.F.L (mm )		3.46mm
Aperture (Close)		F2.8 Fixed iris
Angle of View (°)	2/3"
	1/2"
	1/3"	*999058*
M.O.D (m)
Distortion		<1.53%
Size		*Φ1413**
T.T.L(mm)		15.6mm
Mount		*M12P0.5**
Weight (g)		10g
Marks		2G2P / IR filter
