Product name：SMC2528-12M ( 25mm ) 1.1"

Product description：

FA Lens Features:

High resolution : 12 megapixel cover all 4K & 1080P
Large format: 1.1" size covering 1", 2/3", 1/1.8" camera
Big aperture : F2.8 big aperture makes imaging far better
Low distortion : 0.07% low distortion use machine vision
Woring distance: 65-206mm
Magnification : 0.1x-0.4x

Application : Machine vision, FA, high quality.

Model		SMC2528-12M
Resolution		12 Megapixel
Format （inch）		1.1"
Focal Length （mm）		25mm
Aperture（Close）		F2.8 Manual Iris
Angle of View (°) HxV	1.1"	*140105 ( 0.1x)**
	2/3"
	1/2"
Working distance（mm）		65-206mm
Magnification		0.1x-0.4x
Distortion		<0.07%

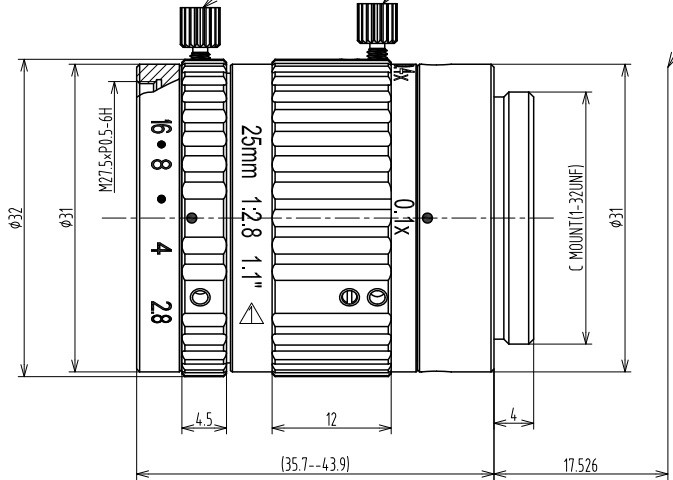

Size		*Φ3239.7**
Mount		C
Weight （g）		210
