Product name：SPH2818M-2M (2.8mm) 1/2.5"

Product description：

CCTV Lens Features:

High resolution: 2.0 megapixel covering 1080P, 720P
Wide focal length: 2.8mm covering wide FOV.
Suitable format: 1/2.5" can cover 1/3", 1/4" camera.
Iris type : Manual iris support adjustment.
Beautiful design: Outward design with yellow line
Application: Police station, court, prison, metallurgic etc .

Model		SPH2818M-2M
Resolution		2.0 Megapixel
IR Corrected
Format (inch)		1/2.5"
Focal Length (mm)		2.8mm
Aperture (Close)		F1.8 Manual Iris
Angle of View (°)	2/3"
	1/1.8"
	1/2.5"	140x100x60
M.O.D (m)		0.15

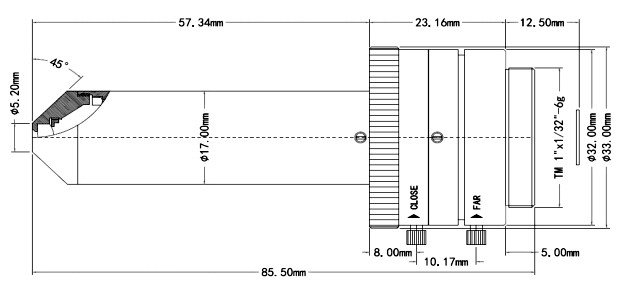

Size		Φ17x33x85.5mm
Distortion
Mount		CS
Weight (g)		80
