Product name：1F814MC-5 (8mm) 1"

Product description：

8mm 1" 5MP Machine Vision FA 1.5% Low Distortion Industrial ITS 4K C CS Megapixel Lens

High resolution : 5.0 megapixel cover all 4K & 1080P
Large format: 1" size covering 1", 3/4, 2/3", 1/1.8", 1/2" camera
Big aperture : F1.4 big aperture makes imaging far better
Low distortion : <1.5% low distortion use machine vision ITS
Application : Automation, machine vision, medical, life science, ITS, SMT, AOI.

Model		1F814MC-5
Resolution		5.0 Megapixel
B.F.L
Format (inch)		1"
Focal Length (mm)		8mm
Aperture (Close)		F1.4 Manual Iris
Angle of View (°)	1"	*887153*
	2/3"
	1/2"
M.O.D (m)		0.2

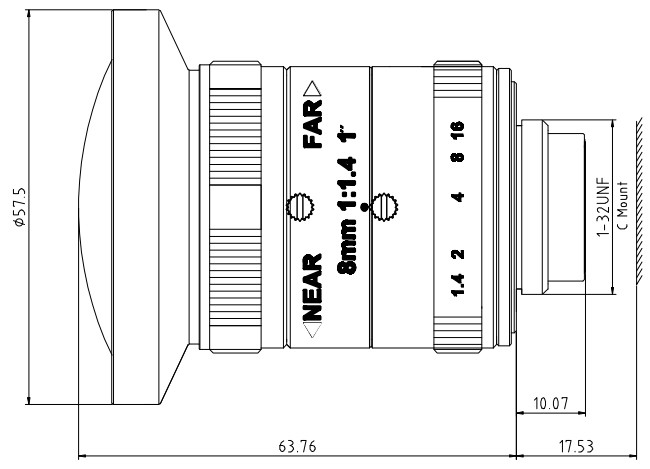

Size		Φ*57.563.76**
Distortion		<1.5%
Mount		C
Weight (g)		250
