CURRENT:HOME > PRODUCTS - Customized Lenses - 360° Panoramic View Inspection Lenses 2/3"
Product name:360° Panoramic View Inspection Lenses 2/3"
Product description:


Model

Resolution

Format

Image Circle

Aperture

W.D (mm)

FOV

Mount

S360146-5M

5MP

1/3"

3.6mm

F6.0-16

19-46.2

7.5*5.2 min

30*25 max

C

S360946-5M

5MP

1/3"

3.6mm

F6.0-16

9-46.52

7.5*6.4 min

30*25.6 max

C

S360954-5M

5MP

1/1.8"

5.32mm

F8.0-16

9-45.4

7.5*5.3 min

30*25 max

C

S360148-5M

5MP

2/3"

6.6mm

F8.0-16

14-48.2

7.5*4 min

30*23.4 max

C


* Instruction:
1) Compact design with 5 megapixel
2) Imaging with 360 degree
3) Working distance various
* Application: Inspection for bottle cap, container, screw thread, plastic injection parts, die-casting parts or any machining parts  ...

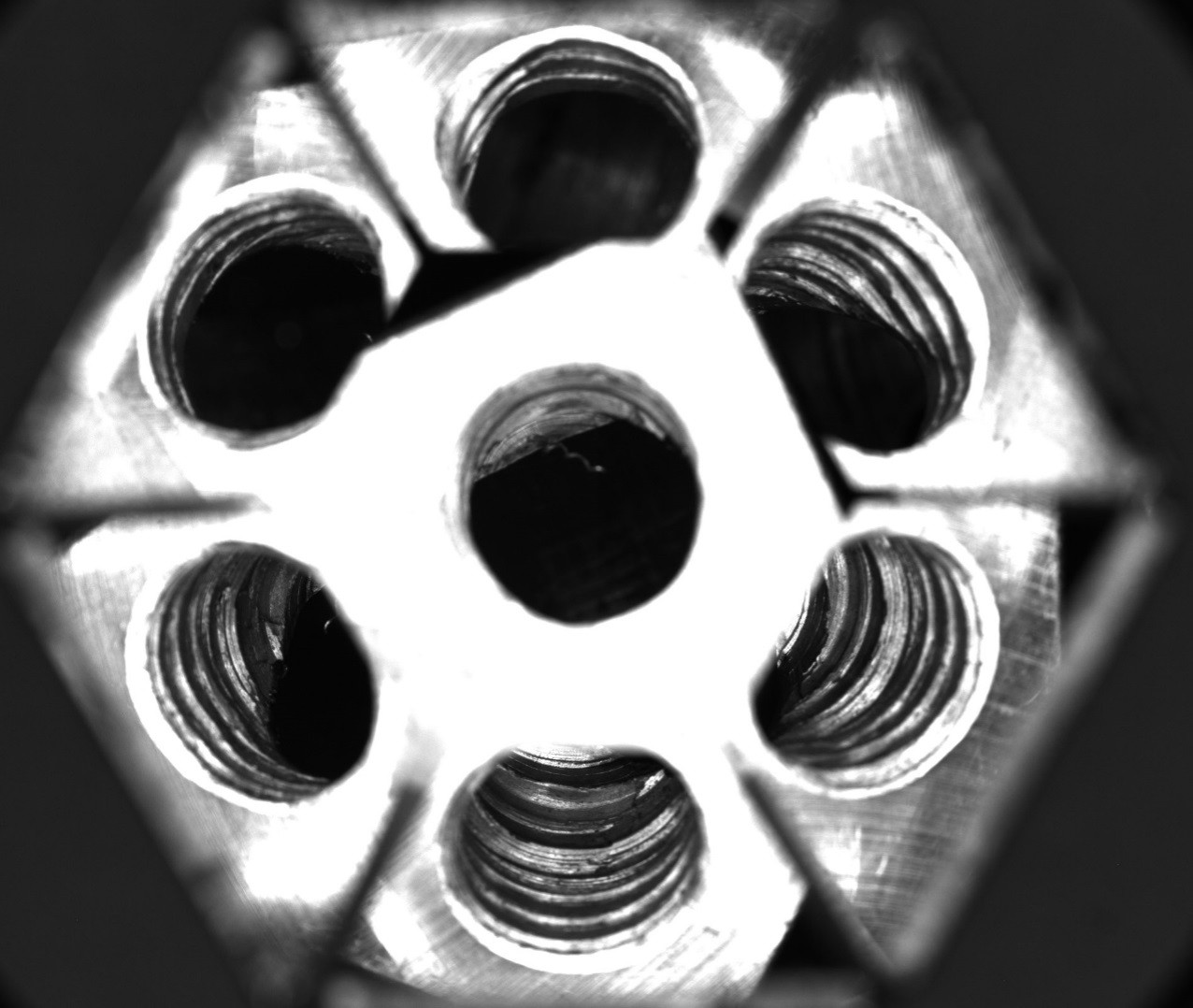

( Screw thread inspection outside by 360 degree )
