Product name：117B3220F12R-12 (3.2mm ) 1/1.7"

Product description：

CCTV Lens Features:

High resolution: 12 megapixel can cover 8MP,5MP.
Big aperture: F2.0 big aperture support evening dark vision
Large format: 1/1.7" large format covering 1/1.8", 1/2"
IR correction : 24h day & night vision

Application: Smart home, security surveilance, office, room, bank etc.

Model		117B3220F12R-12
Resolution		12 Megapixel
IR Corrected		IR
Format (inch)		1/1.7"
Focal Length (mm)		3.2mm
B.F.L (mm)		6.14mm
Aperture (Close)		F2.0 Fixed iris
Angle of View (°)	1/1.7"	*16013199*
	1/2"
	1/2.5"
M.O.D (m)		0.3m

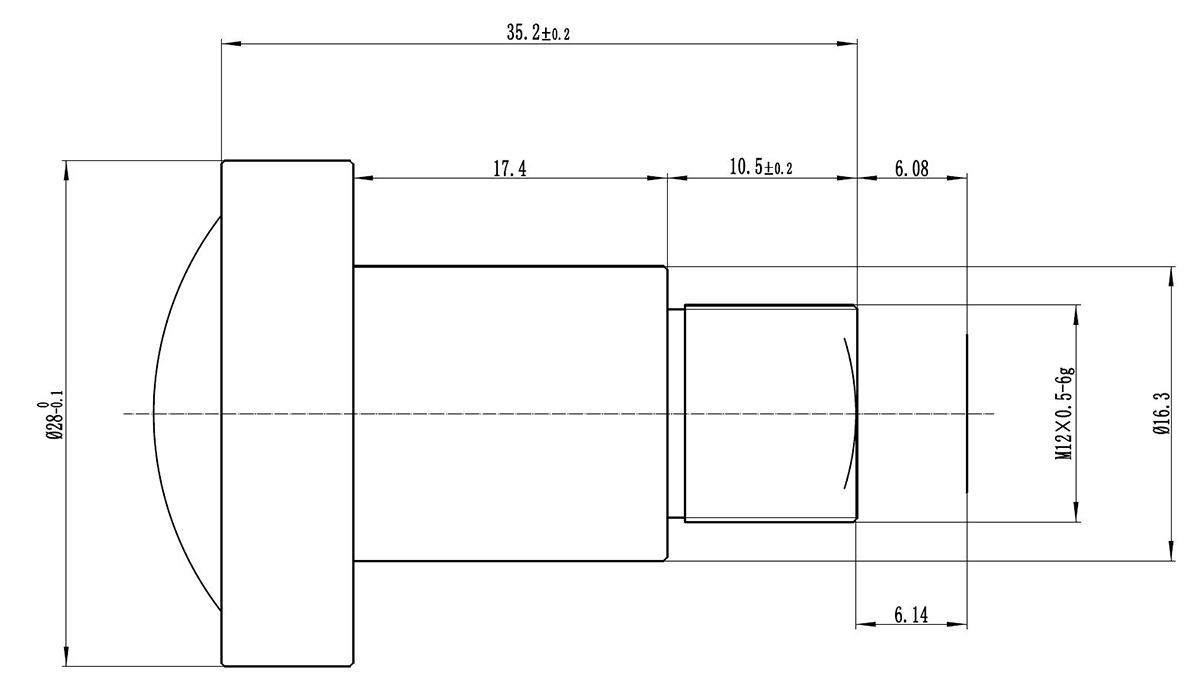

Size		*Φ2838.9**
Distortion		<-64%
Mount		12
Weight (g)		26
