Product name：11F7518MC-10 (75mm) 1.1"

Product description：

75mm 1.1" 10MP Machine Vision FA <0.05% Low Distortion Industrial Face Recognition 4K Camera Megapixel Lenses

High resolution : 10 megapixel cover all 4K & 1080P
Large format: 1.1" size covering 1", 3/4, 2/3", 1/1.8", 1/2" camera
Low distortion : <0.05% low distortion use machine vision ITS

Application : Automation, machine vision, medical, life science, ITS, SMT, AOI.

Model		11F7518MC-10
Resolution		10 Megapixel
Magnification
Format （inch）		1"
Focal Length （mm）		75mm
Aperture（Close）		F1.8 Manual Iris
Angle of View (°)	1"	*12.29.87.4*
	2/3"
	1/2"
M.O.D．（m）		0.8

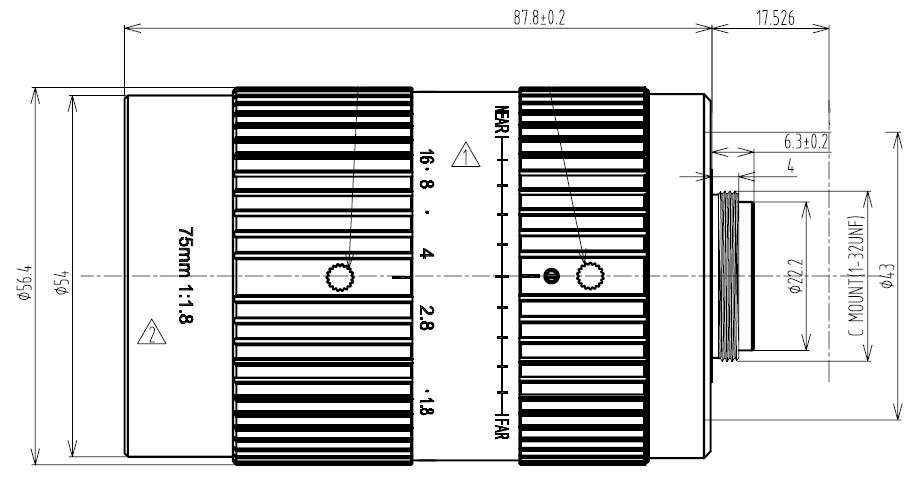

Size		*Φ56.494.1**
Distortion		<0.05
Mount		C
Weight （g）		210
