5mm 1/1.7" 5MP Machine Vision FA <2.3% Low Distortion Industrial Recognition 4K AI Sort Camera C/CS Megapixel Lenses
High resolution : 5.0 megapixel cover 5MP, 3MP & 1080P Large format: 1/1.7" size covering 1/1.7", 1/1.8", 1/2" camera Big aperture : F1.6 big aperture makes imaging far better Low distortion : 2.3% low distortion use machine vision ITS Application : Automation, machine vision, medical, life science, ITS, SMT, AOI.
![](manager/upload/201802/20180205121840427.jpg)
Model 型号
| 117F516MC-5
| Resolution 像素
| 5.0 Megapixel
| Magnification 倍率 |
| Format (inch) 靶面
| 1/1.7"
| Focal Length (mm) 焦距
| 5.0mm
| Aperture (Close) 光圈
| F1.6 Manual Iris
| Angle of View (°) DxHxV
| 1"
|
| 1/1.7"
| 72.6*60.63*47
| 1/2"
|
| M.O.D (m) 最近物距
| 0.15m

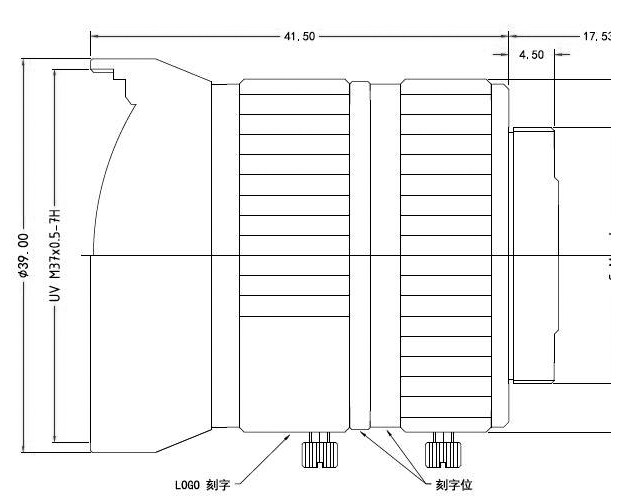

| Size 尺寸
| Φ39*41.5
| Screw filter (mm) 滤镜尺寸
|
| Distortion 畸变
| <2.3%
| Mount 接口
| C
| Weight (g) 重量
| 150g
|
|
