Product name：SMC7538-12M ( 75mm ) 1.1"

Product description：

FA Lens Features:

High resolution : 12 megapixel cover all 4K & 1080P
Large format: 1.1" size covering 1", 2/3", 1/1.8" camera
Big aperture : F3.8 big aperture makes imaging far better
Low distortion : 0.05% low distortion use machine vision
Woring distance: 257-471mm
Magnification : 0.18x-0.38x

Application : Machine vision, FA, high quality.

Model		SMC5038-12M
Resolution		12 Megapixel
Format （inch）		1.1"
Focal Length （mm）		75mm
Aperture（Close）		F3.8 Manual Iris
Angle of View (°) HxV	1.1"	*7858 (0.18x)**
	2/3"
	1/2"
Working distance（mm）		257-471mm
Magnification		0.18x-0.38x
Distortion		<0.05%

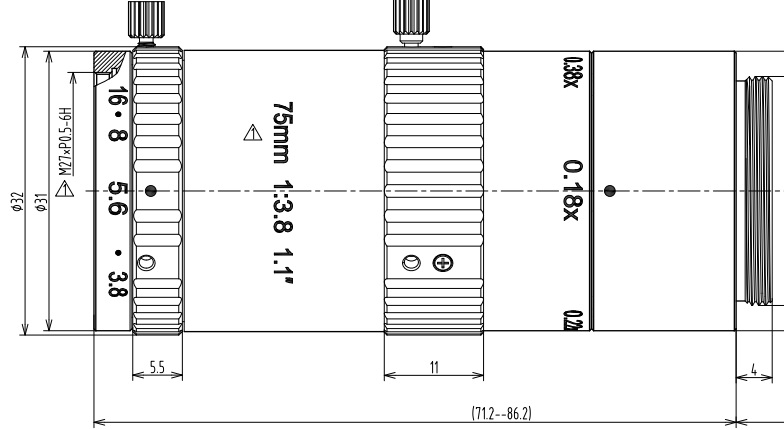

Size		*Φ3275.2**
Mount		C
Weight （g）		210
