Product name：11F1614MC-10 (16mm) 1.1"

Product description：

16mm 1.1" 10MP Machine Vision FA <0.3% Low Distortion Industrial Face Recognition 4K Camera Megapixel Lenses

High resolution : 10 megapixel cover all 4K & 1080P
Large format: 1.1" size covering 1", 3/4, 2/3", 1/1.8", 1/2" camera
Low distortion : <0.3% low distortion use machine vision ITS
Application : Automation, machine vision, medical, life science, ITS, SMT, AOI.

Model		11F1614MC-10
Resolution		10 Megapixel
Magnification
Format （inch）		1"
Focal Length （mm）		16mm
Aperture（Close）		F1.4 Manual Iris
Angle of View (°)	1"	*504133*
	2/3"
	1/2"
M.O.D．（m）		0.1

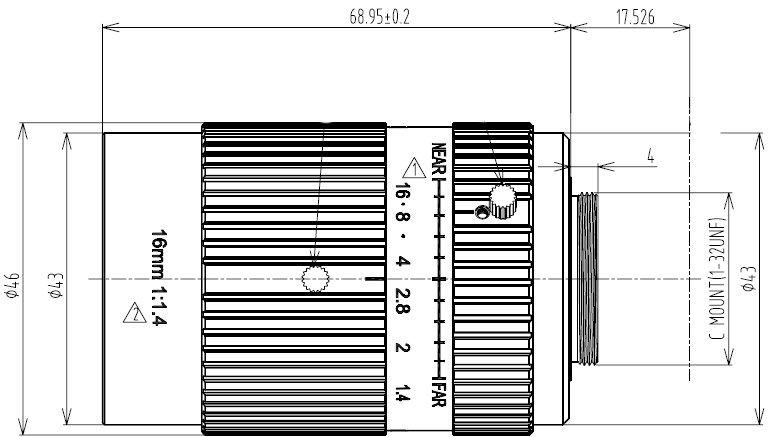

Size		*Φ4672.9mm**
Distortion		<0.3%
Mount		C
Weight （g）		190g
