Product name：SVD0825IR-8M ( 8-25mm ) 1/1.7"

Product description：

1/1.7" 8-25mm 8.0 Megapixel CCTV Lens Surveillance Camera Smart City ITS Face Recognition Bank Use IR Day Night C/CS Mount Lenses

High resolution: 8 megapixel cover 4K & 1080P
Wide focal length: Covering 3.6-18mm, 3.8-16mm, 4-16mm, 4-12mm
Big aperture: F1.4 suitable for dark vision
Large format: 1/1.7" can cover all 1/1.8",1/2",1/2.5", 1/2.7"
IR correction: 24h day & night vision 400~900nm
Application: All bldg., school, exit, room, metrol, highway

Model		SVD0825IR-8M
Resolution		8.0 Megapixel
Format (inch)		1/1.7"
Focal Length (mm)		8-25 mm
IR		IR
Aperture (Close)		F1.4 DC iris
Angle of View (°)	1/1.7" (4:3)	*645239.1*
	1/1.8" (3:2)	*61.15134.2*
	1/2"	*5544.333.4*
M.O.D (m)		1.5m
Distortion		-8.6% ~ -4.9%

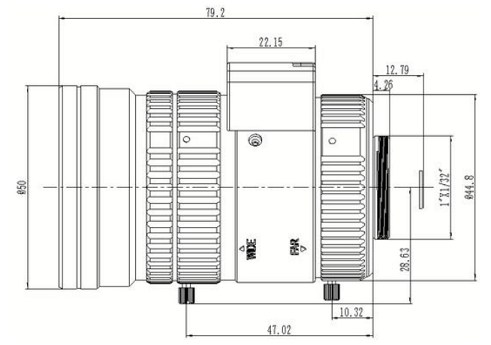

Size		Φ*5079.2**mm
BFL(mm)		7.74~9.88mm
MFL (mm)		7.24~9.38mm
T.T.L (mm)		36.2mm
Mount		CS
Weight (g)		265g
Marks		IR Coating 400~900nm
