CCTV Lens Features:

• High resolution:       2.0 megapixel can cover 1080P, 720P

• Focal length:           10-320mm suitable for shor distance .

• Large format:          1/2" can cover 1/2",1/2.5", 1/2.7"

• IR correction :          24h day & night vision

• Preset function:       Preset function makes auto-run.

• Application:          Highway,train, power station, forest, city surveillance, border.



  Model				12Z10320DCR-2P
  Format  (inch)				1/2"
  Focal length  (mm)				10～320mm
  Aperture				F2.0-360
  Back focal length  (mm)				13.26mm
  Camera mount  (Flange back)				C
  Operation			Iris	DC
  			Focus	Motorized
  			Zoom	Motorized
  Field of view (D*H*L)	1/2"		Wide	51.2°×41.7°×31.8°
  			Tele	1.37°×1.11°×0.84°
  Minimum object distance				1.5m
  Effective diameter		Front		Ø64.8mm
  		Rear		Ø18.7mm
  Filter screw size
  (Coating)				400~950nm
  Feature				2.0MP  ED

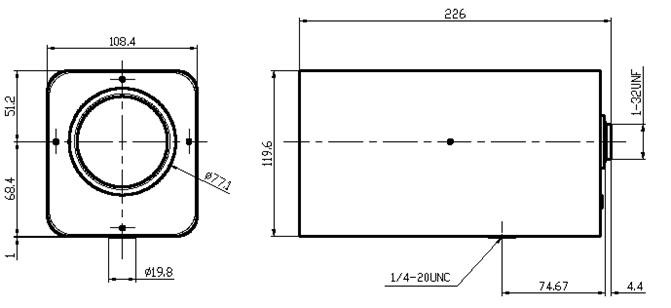

  Dimension(DXHXL)				108.4mm×119.6mm×226mm
  Application temperature range				-10ºC ~ +50ºC
  Total Weight
  Marks				Preset, IR
