Double-Telecentric Lenses 2/3" Object FOV 48mm
SUGGESTED !
The STC11230-48H 2/3" Bi-Telecentric Lenses are specially designed for high-precision application including metrology, inspection etc., these lenses feature a varity of FOV up to 300mm, customized design for 1/2.5" ~1.1" sensor, and bi-telecentric design for high quality imaging. Optimized for 1/2.5"~1.1" C-Mount cameras; Large FOV from 26mm upto 300mm; Excellent resolution for high pixel cameras; Low distortion, good telecentricity,big aperture and big depth of field for high end application.
![](manager/upload/image/20190426/20190426121447154715.jpg)
Optical specifications | Magnification(x) | 0.238 | Object Field of View (Φmm) | 48 | Working Distance (mm) | 128±3 | Max Sensor Size (Φmm) | 11.4(2/3") | Best Aperture (F/#) | 5.4 |
Telecentricity typical (max) (deg) |
<0.1 | Distortion typical (max) (%) | <0.1 |
MTF30 (lp/mm) |
>165 | Depth of Field (mm) | ±7.7@F11 | Length of I/O (mm) | 282±3 |
Field of View (mm × mm) | 8.47x7.1 with ICX625/655 | 35.6x29.8 |

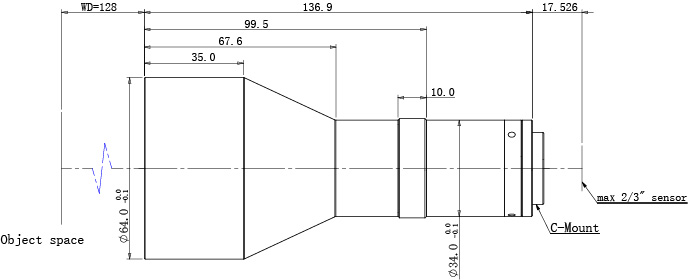

Mechanical Specifications | Mount | C | Length (mm) | 136.9 | Weight (kg) | 0.5 |
|
