1/1.8" 5MP Machine Vision FA Low Distortion Industrial Recognition ITS AI Sort Camera C/CS Megapixel Lenses 4mm, 6mm, 8mm, 12mm, 16mm, 25mm, 35mm, 50mm, 75mm
High resolution : 5.0 megapixel cover all 4K & 1080P Large format: 1/1.8" size covering 1/1.8", 1/2", 1/3 camera Mini size : Small size design makes it match most application Low distortion : Low distortion use machine vision ITS Application : Automation, machine vision, medical, life science, ITS, SMT, AOI.
Model
| Resolution
| Format
| F.Length
| Aperture
| Distortion
| FOV
| MOD
| SFA0420-5M
| 5M
| 1/1.8"
| 4mm
| F2.0
| <0.5%
| 82.5*66.9*94
| 0.1m
| SFA0622-5M
| 5M
| 1/1.8"
| 6mm
| F2.2
| <0.1%
| 59.6*46*69.8
| 0.1m
| SFA0822-5M
| 5M
| 1/1.8"
| 8mm
| F2.2
| <0.1%
| 46.8*36*56
| 0.1m
| SFA1222-5M
| 5M
| 1/1.8"
| 12mm
| F2.2
| <0.3%
| 33*24.3*40.7
| 0.1m
| SFA1622-5M
| 5M
| 1/1.8"
| 16mm
| F2.2
| <0.1%
| 24.7*18.2*30.3
| 0.1m
| SFA2522-5M
| 5M
| 1/1.8"
| 25mm
| F2.2
| <0.1%
| 13.6*11.3*19
| 0.1m
| SFA3522-5M
| 5M
| 1/1.8"
| 35mm
| F2.2
| <0.1%
| 8.8*7*12.2
| 0.2m
| SFA5028-5M
| 5M
| 1/1.8"
| 50mm
| F2.8
| <0.05%
| 8.2*6.1*10.2
| 0.3m
| SFA7528-5M
| 5M
| 1/1.8"
| 75mm
| F2.8
| <0.05%
| 5.4*4*5.84
| 0.5m
|

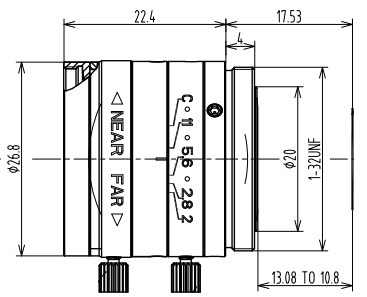

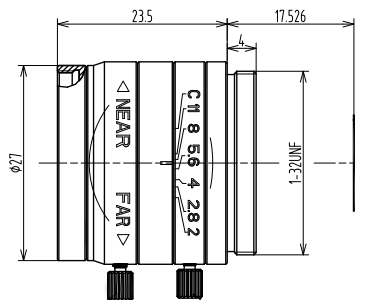

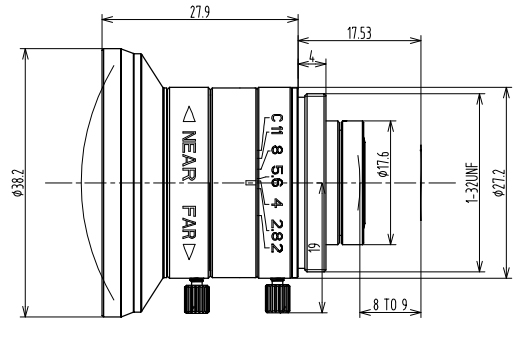

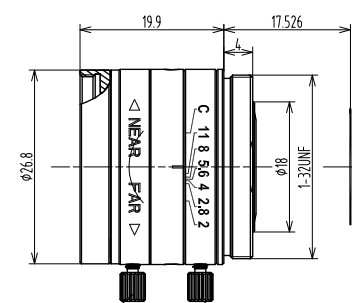

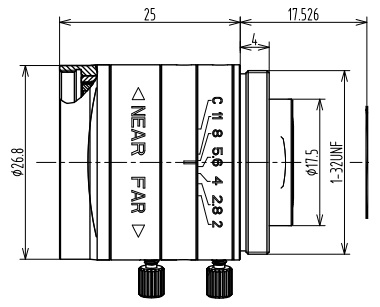

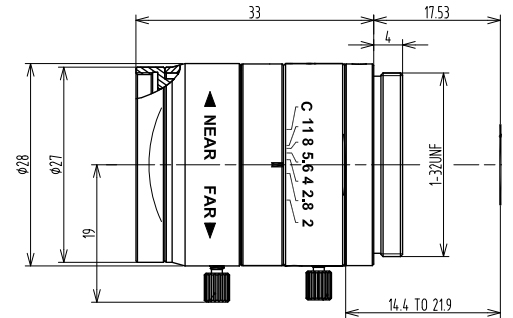

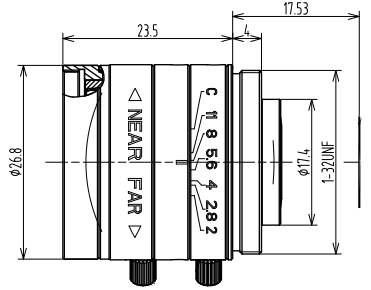

 ( 4mm ) (6mm) (8mm) (12mm) (16mm) (25mm) (35mm)

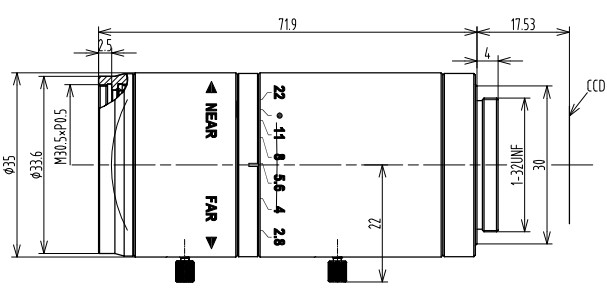

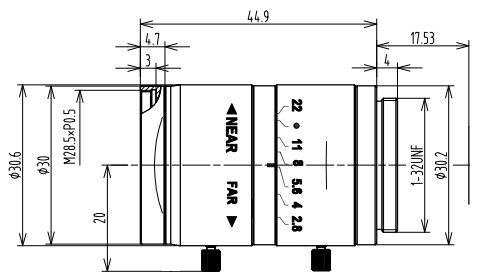

 (50mm) (75mm)
|
