Product name：S1VD1140IR-12M ( 11-40mm ) 1"

Product description：

CCTV Lens Features:

High resolution: 12 megapixel can cover 4K,1080P
Wide focal length: 10-40mm can instead 12-36mm lens.
Big aperture: F1.6 suitable for dark vision
Large format: 1" can cover all 1",1/1.7",1/1.8",1/2",1/2.5"
Low distortion: Fit for ITS need low distortion image
Beautiful design: Outward design with blue line
Filter size : M60*0.75
Application: Smart city, exit, metrol, ITS, highway.

Model		S1VD1040IR-12M
Resolution		12 Megapixel
IR Correction		IR
Format		1"
Focal Length (mm)		10-40mm
Aperture (Close)		F1.6 DC iris
Angle of View	1"	*68.554.641.5*
	2/3"	48.23823.7
	1/2"	*35.727.924.9*
M.O.D (m)		2.5m
Distortion		-8% ~ -4.8%

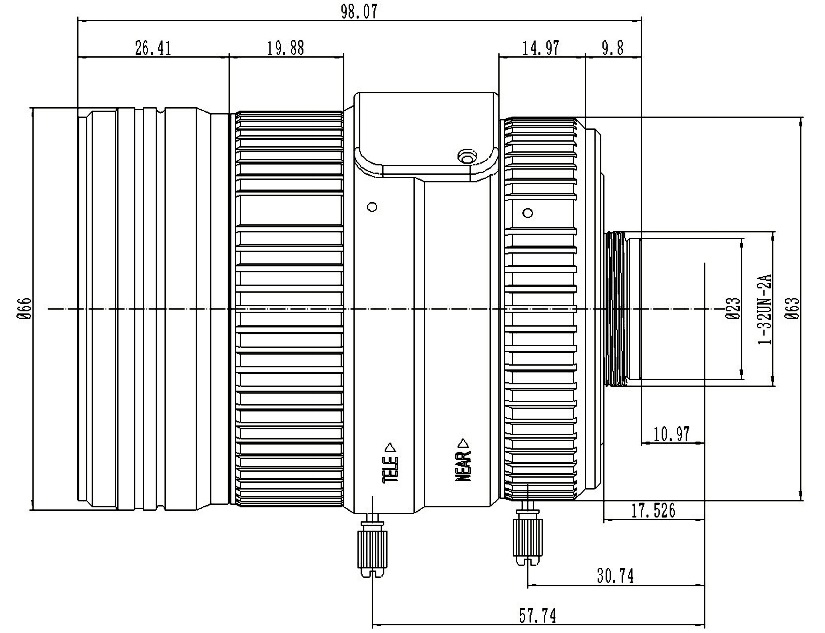

Size		*Φ6698.07**
Mount		C
Weight (g)		560
