Product name：SMC5028-12M ( 50mm ) 1.1"

Product description：

FA Lens Features:

High resolution : 12 megapixel cover all 4K & 1080P
Large format: 1.1" size covering 1", 2/3", 1/1.8" camera
Big aperture : F2.8 big aperture makes imaging far better
Low distortion : 0.05% low distortion use machine vision
Woring distance: 95-132mm
Magnification : 0.5x-0.8x

Application : Machine vision, FA, high quality.

Model		SMC5028-12M
Resolution		12 Megapixel
Format （inch）		1.1"
Focal Length （mm）		50mm
Aperture（Close）		F2.8 Manual Iris
Angle of View (°) HxV	1.1"	*2821 (0.5x)**
	2/3"
	1/2"
Working distance（mm）		95-132mm
Magnification		0.5x-0.8x
Distortion		<0.05%

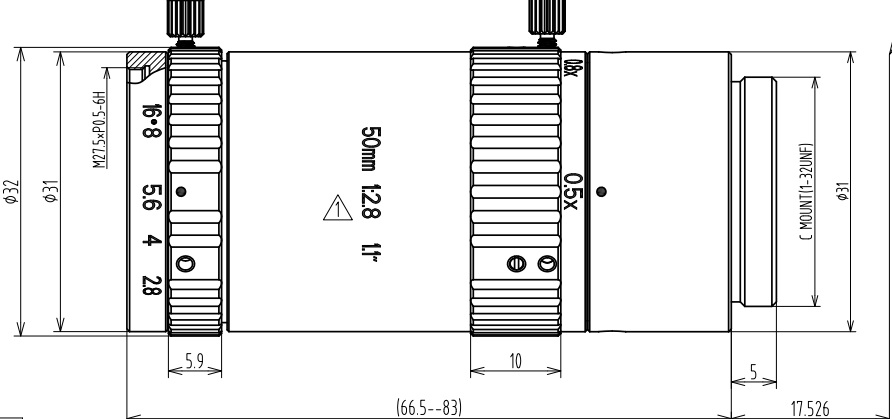

Size		*Φ3271.5**
Mount		C
Weight （g）		210
