Product name：11F2514MC-10 (25mm) 1.1"

Product description：

25mm 1.1" 10MP Machine Vision FA <0.1% Low Distortion Industrial Face Recognition 4K Camera Megapixel Lenses

High resolution : 10 megapixel cover all 4K & 1080P
Large format: 1.1" size covering 1", 3/4, 2/3", 1/1.8", 1/2" camera
Low distortion : <0.1% low distortion for measurement
Application : Automation, machine vision, medical, life science, ITS, SMT, AOI.

Model		11F2514MC-10
Resolution		10 Megapixel
Magnification
Format （inch）		1.1"
Focal Length （mm）		25mm
Aperture（Close）		F1.4 Manual Iris
Angle of View (°)	1"	*34.928.722*
	2/3"
	1/2"
M.O.D．（m）		0.1

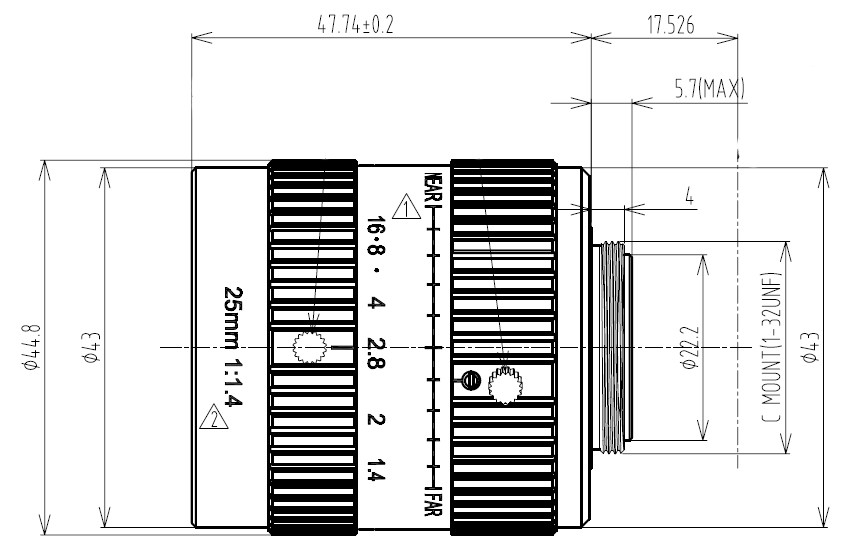

Size		*Φ44.853.4mm**
Distortion		<0.1%
Mount		C
Weight （g）		190
