Product name：SMC3528-12M ( 35mm ) 1.1"

Product description：

FA Lens Features:

High resolution : 12 megapixel cover all 4K & 1080P
Large format: 1.1" size covering 1", 2/3", 1/1.8" camera
Big aperture : F2.8 big aperture makes imaging far better
Low distortion : 0.05% low distortion use machine vision
Woring distance: 59-150mm
Magnification : 0.25x-0.7x

Application : Machine vision, FA, high quality.

Model		SMC3528-12M
Resolution		12 Megapixel
Format （inch）		1.1"
Focal Length （mm）		35mm
Aperture（Close）		F2.8 Manual Iris
Angle of View (°) HxV	1.1"	*5642 (0.25x)**
	2/3"
	1/2"
Working distance（mm）		59-150mm
Magnification		0.25x-0.7x
Distortion		<0.05%

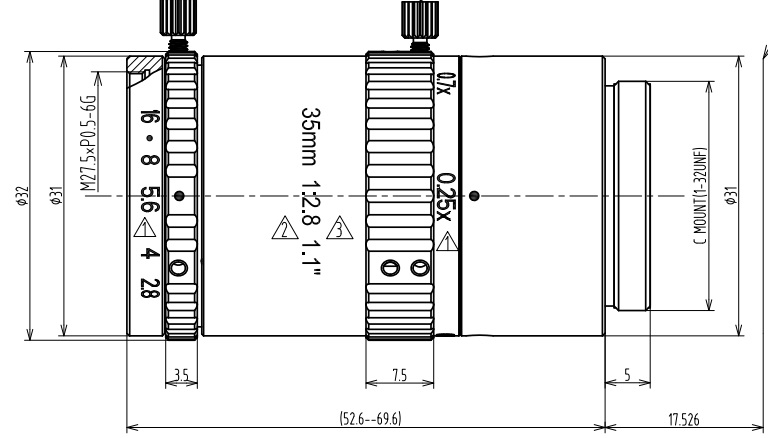

Size		*Φ3257.6**
Mount		C
Weight （g）		210
