Product name:S23RL36052-M Panoramic Inspection Lens
Product description:

360° Megapixel FA Lenses Built-in LED Light 2/3" Camera High Resolution Inspecting Compact Object

* 360°inner side inspection

* High resolution & compact size

* LED light built-in

* Inspect small size object at wide sight

* Application for tube, auto, container inside inspection

Format inch

2/3"

Resolution

Megapixel

Image circle

Φ6.6

Angle of View (°) D*H

2/3"

5*120/5*123

Wavelength

450~650

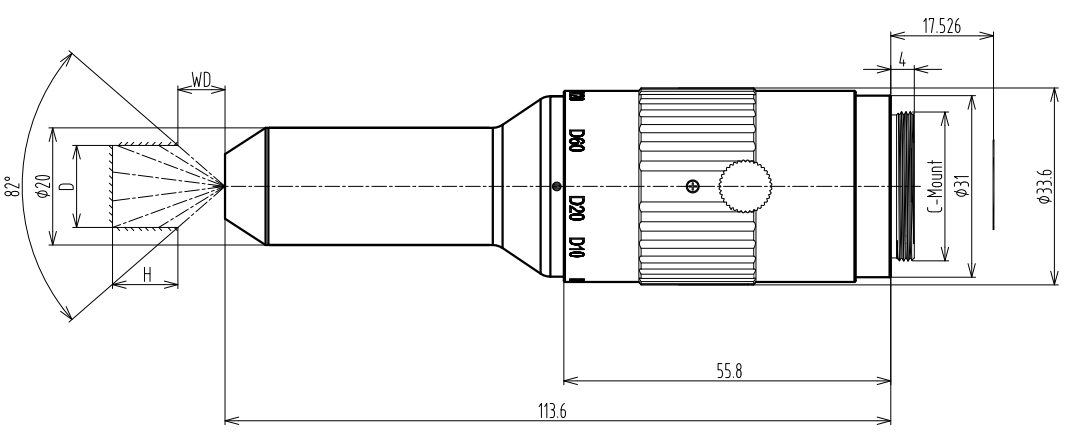

Maximum Diameter (mm)

Φ33.6*113.6mm

Mount

C

Working distance (mm)

Diameter(mm)

Height (mm)

5

5

3.7

10

10

6

30

31

17

50

51

29

80

82

47

100

102

58

120

123

70

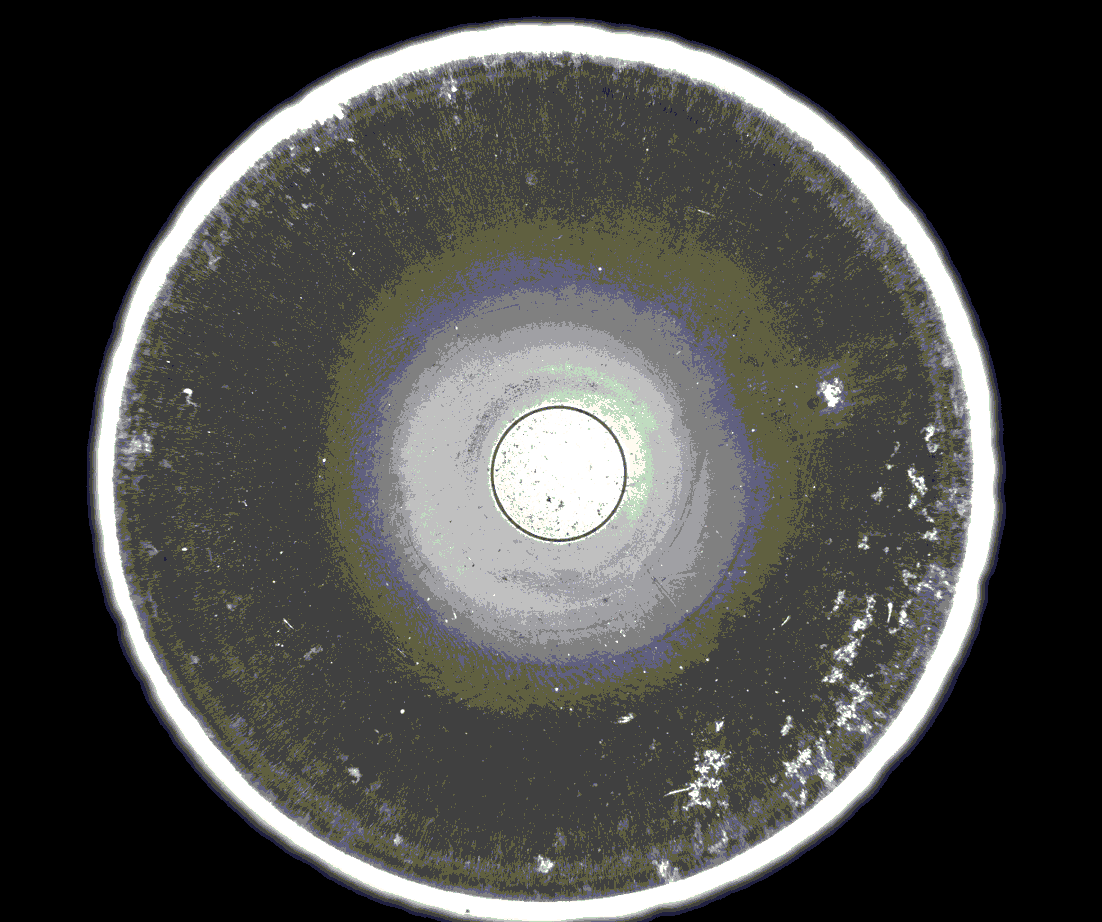

                                     ( Tea cup inner side inspection )

                               ( Stainless steel pipe inner side inspection )
