50mm 1" 8MP Machine Vision FA <-0.01% Low Distortion Industrial Face Recognition 4K Camera C Megapixel Lenses
High resolution : 8 megapixel cover all 4K & 1080P Large format: 1" size covering 1", 3/4, 2/3", 1/1.8", 1/2" camera Low distortion : -0.01% low distortion use machine vision ITS Application : Automation, machine vision, medical, life science, ITS, SMT, AOI.
![](manager/upload/image/20190415/20190415190066146614.jpg)
Model
| 1F5020MC-8
| Resolution
| 8 Megapixel
| Format (inch)
| 1"
| Focal Length (mm)
| 50mm
| B.F.L (mm )
| 21.35mm
| Aperture (Close)
| F2.0 Manual iris
| Angle of View (°)
| 1"
| 18.2*15*11
| 2/3"
|
| 1/2"
|
| M.O.D (m)
| 0.25m
| Distortion
| -0.01%

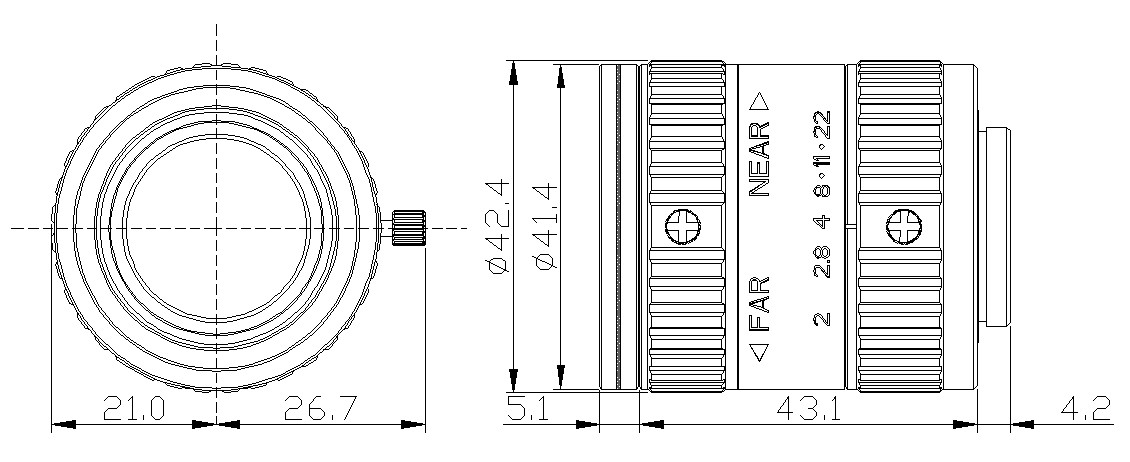

| Size
| Φ42.4*43.1
| Filter size (mm)
| M37*0.5
| T.T.L (mm)
|
| Mount
| C
| Weight (g)
| 120g
| Marks
| Can be used for 10MP camera
|
|
